Descripción

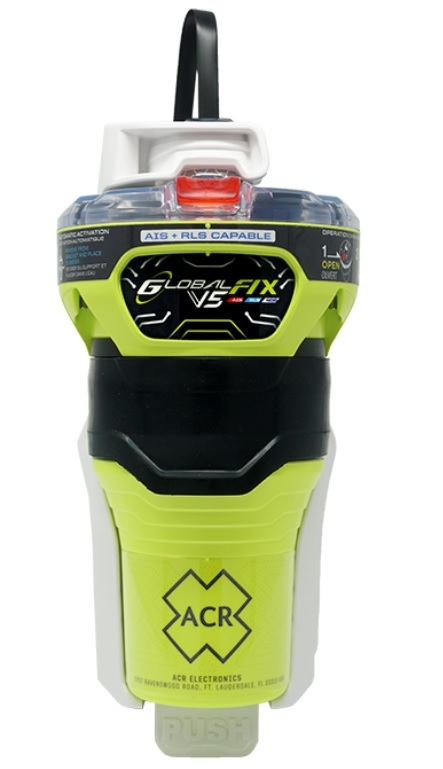

Name: GlobalFix V5 / Part Number: 2851 (Category I)
Model Number: RLB-44
Transmit Power (EIRP) (406/121.5) 406.031 MHz, 12W / 121.5 MHz, 50mW +/- 3dB
AIS: Yes, AIS Alerts for Local Rescue
Return Link Service: Yes, Enabled RLS confirmation direct to beacon
NFC / Mobile App: Yes, Near Field Communication (NFC) and Mobile App Included
Strobe: White & Infrared Dual Technology
Size (antenna up) – Beacon Only: 18.5” x 4.3” x 4.36”
(470 mm x 109 mm x 111 mm)
Weight – Beacon Only 1.78 lbs (810 G)
Battery Lithium battery, Li/FeS2
Battery Replacement 10-year replaceable battery (replace 10 years after the date of manufacture or after activation)
Temperature Range
(Class 2) Storage: -22°F to +158°F (-30°C to +70°C)
Operating: -4°F to +131°F (-20°C to +55°C)
GPS 72 Channel Multi-constellation receiver (GPS, Galileo, & Glonass GNSS)
Activation Out of bracket and wet, or manually in or out of the bracket
Waterproof 33 ft (10 m) for 5 min.
Buoyant Yes
Operational Life 48 hours minimum @ -4°F (-20°C)
Deployment Category I – Hydrostatic Release (auto deploy) or
Category II – Manual Release (manual deploy)
